Meyer Sound cinema system enhances screenings at BAMPFA

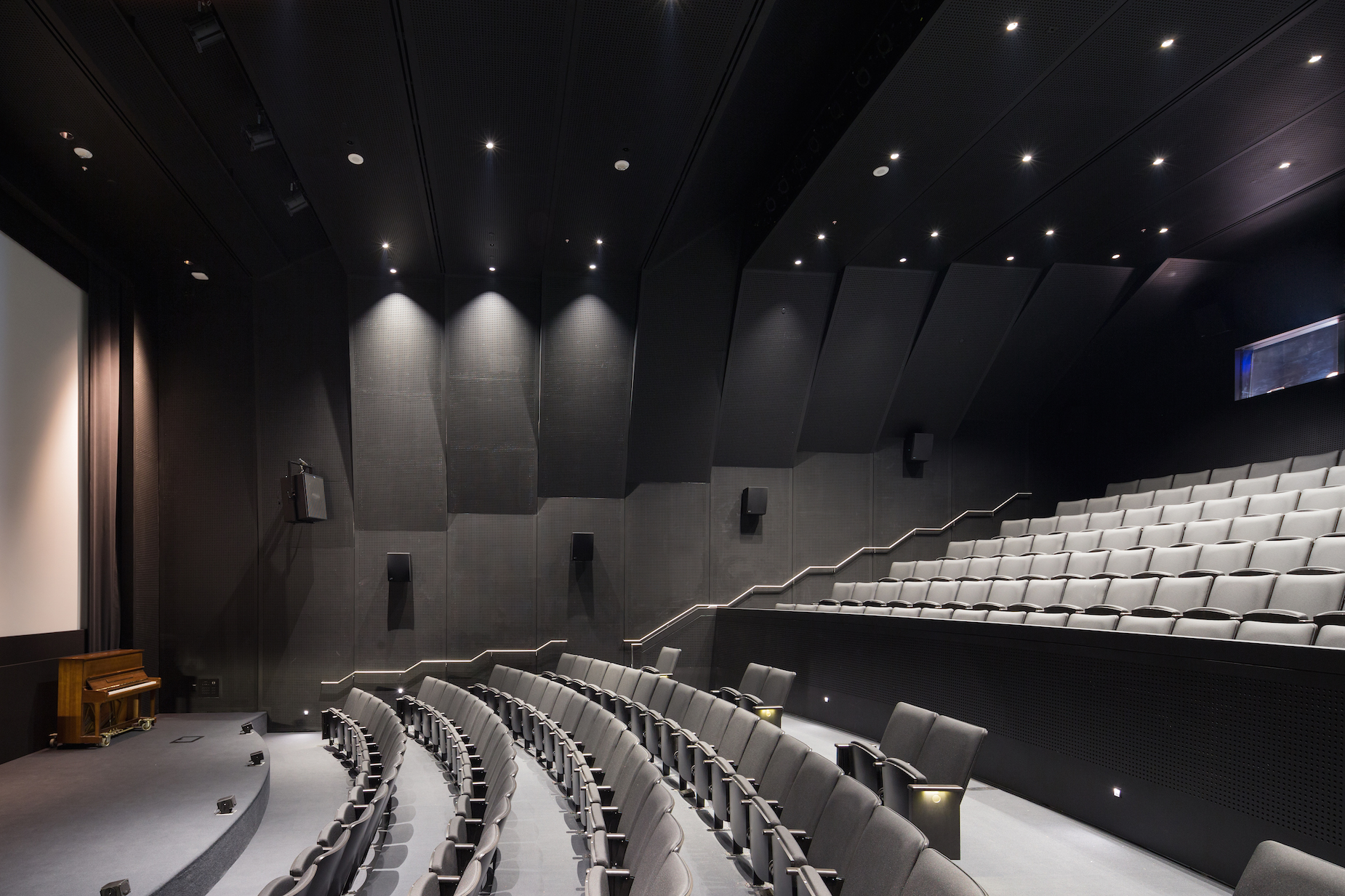

The recently reopened UC Berkeley Art Museum and Pacific Film Archive (BAMPFA) building has installed a 7.1 Meyer Sound cinema system in its 232-seat Barbro Osher Theater.

In addition, Meyer Sound CAL column array loudspeakers with beam steering technology provide sound reinforcement for an outdoor LED video screen.

The Osher Theater is the first in the history of BAMPFA that was designed and built to meet the highest technical standards for film screenings. “Aside from the 10% of our film screenings that are silent, sound is a key component of the experience,” said Larry Rinder, director of BAMPFA. “We wanted to have sound quality that was equal to our stringent standards for the visual component, as it is critical that the soundtrack be heard exactly as the film’s creators intended. In that regard, we feel fortunate to have a state-of-the-art Meyer Sound cinema system in our theatre.”

For Susan Oxtoby, senior film curator, the Meyer Sound cinema system is the key aural component in BAMPFA’s commitment to a film-going experience without compromise. “We go to extraordinary lengths to make sure all our films, whether historical or contemporary, are presented in an inviting space that presents an ideal environment for hearing every detail. To that end, the auditorium’s quiet acoustical design is perfect for cinema presentations, and the Meyer Sound system performs beautifully, recreating every sonic nuance with no distortions or distractions.”

The system comprises three Acheron 80 screen channel loudspeakers, seven X-800C cinema subwoofers, and 16 HMS-10 surround loudspeakers. A separate sound reinforcement system for speech and live music presentations consists of two CQ-1 loudspeakers and six MM-4XP self-powered loudspeakers, while a Galileo loudspeaker management system with three Galileo 616 processors provides system drive and optimisation.

Audio for BAMPFA’s 32-by-18ft, exterior LED screen is supplied by two CAL 96 column array loudspeakers with digital beam steering technology. Two portable 500-HP subwoofers are available as needed, and a Galileo loudspeaker management system with one Galileo 408 processor handles drive and control. The CAL loudspeakers are programmed with two presets: one for a near-field focus that keeps sound contained close to the building, and a long-throw setting that can cover an audience of hundreds when the adjacent street is closed for public film showings and other special events.

AV integrator for the BAMPFA project was Richmond, California-based David Carroll Associates, with project management by Stewart Rosenthal, engineering by John Brenneis and Dennis Fortin, and design consultation by David Carroll. The initial scope of AV requirements was defined by New York-based theatrical design consultants Fisher Dachs Associates. Building design was by the New York-based architectural firm of Diller Scofidio + Renfro, with San Francisco-based firm EHDD serving as executive architect.
