In addition to exhibiting rare artifacts, a new museum is using projection, 4D effects, touchscreens and other AV technologies to illustrate the history, and the continuing relevance, of the events and ideas that led to the founding of the USA. Christopher James reports
Located a few blocks from Philadelphia’s historic Independence Hall is the recently opened Museum of the American Revolution. The new red-brick building boasts 3,000sqm of galleries and theatres winding around a central atrium. Immersive exhibits, engaging films and an iconic collection of artifacts bring to life the events, people and ideals of the nation’s founding and engage visitors in the history and continuing relevance of the American Revolution.
Electrosonic was charged with the audiovisual design, engineering, product procurement, installation and commissioning for the museum, which includes multiple theatres and exhibit spaces. The integrator partnered with general contractor Intech and union labour provider M Gitlin Co on the project.
Visitors begin their tour of the museum in the Lenfest Meyer Theater with the 15-minute orientation film, Revolution. The sweeping film, shown throughout the day, explores the origins, experiences and ongoing legacy of the American Revolution and sets the stage for the core exhibition.
Electrosonic supplied three Christie HD6K-M projectors to display the edge-blended content on a 10m x 3m Stewart screen. A 7thSense server sources the film. A complex audio system features three Tannoy VQ-100 speakers at left, right and centre, two Tannoy subwoofers, and 22 wall- and ceiling-mounted JBL 8350 speakers for an all-encompassing sound experience. Q-SYS audio control is used throughout the building.
When the Lenfest Meyer Theater is not showing the main Revolution film, the theatre can also act as a presentation and special event space. Electrosonic furnished a roll-out podium and mic, AMX touchscreen control and a Christie DWU-851Q projector for those occasions.
After viewing the orientation film, visitors head up the grand staircase to begin their exploration of the origins of the American Revolution, the fight for independence and the ongoing legacies of the Revolution.
In tent media
The “biggest and most challenging” exhibit for Electrosonic, according to Electrosonic project manager Kevin Mayfield, is General Washington’s original sleeping and office tent, which was carefully preserved by generations of Martha Washington’s descendants and previously housed at Valley Forge. The tent is now presented as part of a unique theatre experience.
Visitors enter the room to watch a front-projected film on a screen that tells the story of the tent’s remarkable journey from the battlefield to the present day. When the lights slowly come up, the screen lifts to show a scrim, which becomes a new projection surface for more imagery. Then, the scrim lifts to reveal Washington’s tent housed behind protective glass. Projections show shadows in the tent, as if Washington and his colleagues were walking around inside; landscapes and weather are projected onto the back wall cyclorama.
Electrosonic provided a custom Gerriets three roller screen system, 10m long and made of carbon fibre, which had to fit a very tight space inside the proscenium. MetalMaster Manufacturing in Orlando designed and fabricated custom brackets to stack and offset the screens.
A 7thSense server feeds two Christie HD14KM projectors, one in front of the glass to project onto the screen and scrim and one behind the glass to project onto the back cyc. A Christie DWX-555GS projector displays the shadow imagery.
“The installation and commissioning were done with a stand-in tent so we could figure out everything without fear of damaging Washington’s real tent,” says Mayfield. “We had to ensure that the amount of light from the projectors on the tent would not further age the tent. Once the real tent was brought in, no one will enter that space unless the equipment requires servicing.”
Audio is delivered via Tannoy speakers, BagEnd subwoofers and 16 JBL 8350 speakers, eight of them overhead and eight surround. MetalMaster also supplied custom speaker brackets for the tent exhibit.
Interactives
Interactive exhibits can be found throughout the galleries. In a ‘Posters of Protest’ exhibit, next to a life-size reproduction of the famed Boston Liberty Tree, five side-by-side Planar monitors, in portrait mode and driven by Planar videowall processors, are fed by a custom computer with five separate outputs. Motion sensors under each monitor activate as visitors approach; visitors touch a custom PQ Labs touch overlay, with 32 active touch points, to trigger stories of key moments during the decade of resistance that led up to the war for each monitor.
Electrosonic installed five 3M 32in multi-touch monitors in two exhibits. Three are dedicated to ‘Arms of Independence’ and two to ‘Finding Freedom’. Three more Planar touchscreens, driven by Dell computers, feature in the ‘Season of Independence’ exhibit.

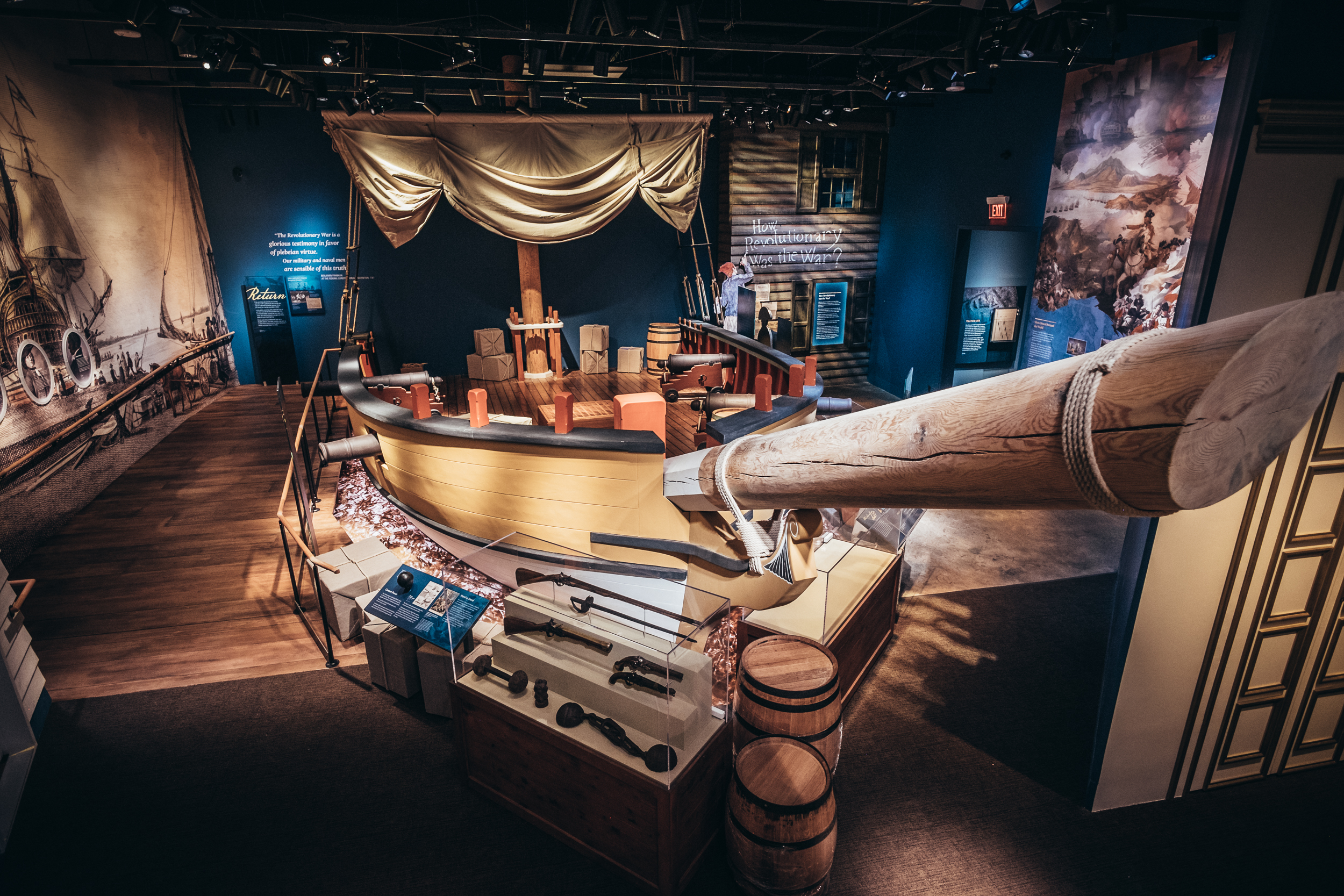

One of the most fun exhibits is a replica privateer ship that visitors can board. Privateers were privately owned vessels licensed by Congress or state governments to attack British ships and disrupt trade. Electrosonic provided audio for this exhibit. “There are custom Acoustic Enhancement activated sound panels hidden in crates, overhead in the ship and in the ship’s walls,” explains Mayfield. “Each has its own point source audio – birds, sounds of loading cargo, people on the dock. It’s subtle but very powerful, an exhibit we’re very proud of.”
About halfway through the galleries is the small ‘Battlefield Theater’, which shows a filmed re-enactment of the 1777 Battle of Brandywine at Chadds Ford, Pennsylvania. Visitors walk up to a waist-high wall to view a diorama of the battlefield with a screen behind it. Two Christie DWU-851Q edge-blend projectors display the video feed from the 7thSense server. Strobe lights, ‘gunpowder’ smoke and a shaking floor add 4D elements to the experience. Electrosonic installed three Tannoy screen speakers, six Tannoy surrounds, two BagEnd subwoofers and four Aurasound floor shakers, the latter providing the feel of marching soldiers. “It’s an extremely immersive environment in a fairly small space,” says Mayfield.
In the Oneida Nation Gallery visitors can stand among life-size replicas of members of the Oneida Indian Nation. Motion sensors track the visitors’ approach and stories of the intense debate – to ally with the British or join the revolutionary forces – are played back. A curved screen covering three sides of the room shows video imagery from four overhead Christie DWU-851Q projectors in one seamless, edge-blended display.
Electrosonic outfitted a small circular room with three overhead Digital Projection dVision 30sx+XB projectors to show New York City crowds tearing down a giant statue of King George III on horseback, after the first public reading of the Declaration of Independence to Washington’s Army. The room’s walls serve as the projection surface. This space and the Oneida Nation Gallery use Scalable Displays Auto Alignment software on 7thSense servers to automatically align the projectors.
The final galleries are dedicated to the new republic, the birth of the Constitution and Bill of Rights and the challenges faced by the young nation at the end of the 18th century.
Exhibit control throughout the museum is provided by Medialon; AMX systems serve as the touchscreen interfaces.
“This was the friendliest construction site I have ever been on – and that applies to all the trades,” says Mayfield. “All of us were challenged by the size and scope of the museum and the complex spaces, but it was all about the team and having the right team members was essential. Everyone was not only good at what they do but very collaborative too – a rare combination!”
