As one of the world’s fastest growing social media platforms, LinkedIn has become an essential part of how more than 500 million people build and curate their business networks.
LinkedIn have applied their belief in fast, efficient and flexible networking by enlisting Q-SYS to achieve advanced integration within their large multipurpose meeting rooms across multiple corporate campuses.
Challenges
Within each of LinkedIn’s four Californian corporate locations, large multipurpose meeting spaces are used for all-hands gatherings, hosting seamless discussions and presentations spanning multiple sites. But in order to achieve faultless communication between campuses, along with centralised control and production, they needed an AV infrastructure with immense flexibility. For systems integrator David Carroll Associates (DCA), this required deep design considerations. These included:
1 Intelligibility With all-hands meetings taking place across multiple corporate sites, LinkedIn required a system that would not only enable discussions to take place seamlessly, but would eliminate the acoustic challenges of broadcasting from large, reverberant reconfigurable multipurpose rooms.
2 Channel Count & Source Conversion The chosen solution had to be able to manage and convert multiple sources and formats while accommodating a high channel count density.
3 Current and Emerging Standards The system needed to be designed for today’s standards like bridging between native and bridge networks like Dante. Equally, it needed to be ready for any future standards that might emerge, including AES67 for audio over-IP interoperability.
4 Ease of Use The system had to be user friendly, so that LinkedIn staff members were comfortable using it immediately and with minimal instruction.
Solutions
DCA and LinkedIn decided to implement Q-SYS within the company’s famous San Francisco headquarters, its Middlefield campus in Mountain View, CA, and its Maude campus in Sunnyvale, CA. A fourth location, Pastoria Avenue, will follow imminently. The intention is to connect all of the facilities, allowing for the maximum flexibility of audio, video and control processing and management – both for current and possible future requirements.
Each of the four locations currently feature QSC Integrated Core 500i processors. These Cores each have the capability of accommodating eight Q-SYS input and/or output cards. The channel count may be further expanded by the addition of Q-SYS I/O Frames and other Q-SYS peripheral devices.
Higher Channel Count Density

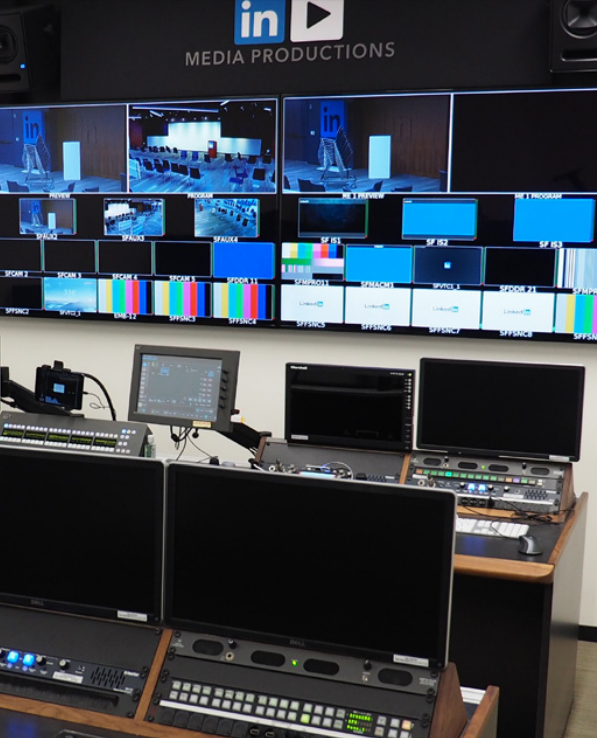

A closer examination of the installation in San Francisco underlines the advantages of a Q-SYS Platform backbone. Work at this location focused on a large meeting room featuring such equipment as a Cisco video conferencing system, a number of wireless microphones enabled with Audinate’s Dante media networking technology, and a Yamaha CL3 console for audio mixing.
“In San Francisco, most of the sources were analogue or AES digital, but the live-sound mixer only had a few analogue inputs,” explains John Brenneis, a lead design engineer at DCA who worked intensively on the LinkedIn project.
A solution immediately presented itself courtesy of Q-SYS, specifically the extremely high channel count density that its Intel-based Cores support.
“The combination of Cores and Q-SYS I/O peripherals were used to convert these various formats to and from Dante to allow mixing to take place,” Brenneis confirms.
AES67
Eventually, LinkedIn expects to route audio between campus sites via AES67, the audio-over-IP standard that guarantees interoperability between existing IP-based audio networking products. As of April 2017, Q-SYS Designer software supports AES67-standard interoperability, which LinkedIn plans to implement into its campuses.
Robust Acoustic Echo Cancellation
Enabling basic two-way communication is one thing, but ensuring it sounds great is another challenge entirely. When all-hands meetings take place in large, often reverberant spaces, it’s easy to run into intelligibility issues.
To ensure a seamless two-way communication experience, Q-SYS once again delivered the ideal solution with its third-generation acoustic echo cancellation (AEC) technology, which ensures that all audio is delivered with pristine intelligibility. The room used software-based AEC processors within Q-SYS to provide over a dozen portable and fixed microphones in each room before being mixed into the PA and the video conference codec.
“We’ve tested acoustic echo cancellation (AEC) from all the major DSP manufacturers,” explained David Carroll. “We noticed that the AEC from Q-SYS offered very natural response and no gating artefacts.”
Audio Conversation
In addition to ‘pure’ audio processing duties, Q-SYS is being used to convert embedded audio from SDI video signals outputted from a Grass Valley Router into Dante for mixing on the Yamaha desk. Analog mics and line inputs from the Cisco video-conferencing system codecs can also be routed out on Dante via Q-SYS.
“Above all we needed a platform that could handle conversion between all of the various audio formats – analogue, AES, Dante and AES67 – and that is what we have achieved with Q-SYS, says Brenneis.”
