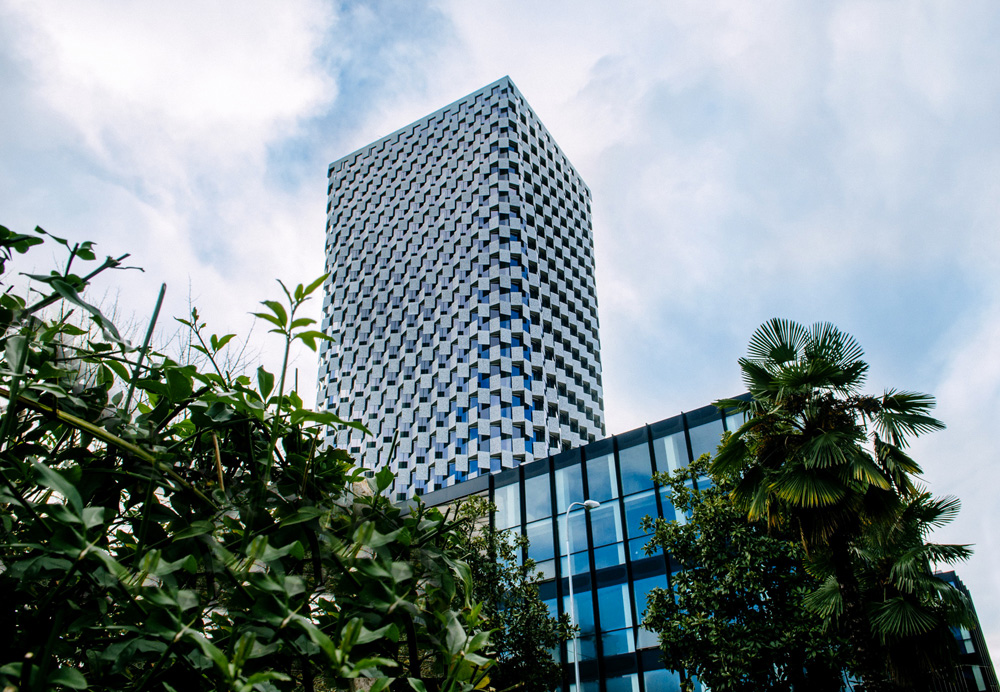

RCF delivers five-star voice alarm system at Plaza Hotel

The newly opened Plaza Hotel in Tirana, Albania features a high-end voice alarm and music distribution system engineered by RCF and installed by local company AI Vision.

The five-star hotel features 23 floors, 190 rooms and suites, as well as 760sqm of technically-equipped rooms for meetings.

The focal point of the system is the DXT digital matrix system and it features several customisations upon the customer’s request, including a control application for iPad. It is EN54-16 certified and allows the distribution of entertainment music, vocal alarms from microphone consoles and automatic evacuation messages. The system, divided into 12 zones, is structured in order to allow fully versatile management of background music, zone by zone.

The interface for the control of background music is an iPad application developed by the RCF engineering team, specifically for the customer. The RCF engineer explained: “It can work from any area of the hotel thanks to the full WiFi coverage. After selecting the zone, the user can decide whether he or she wants to disable the music distribution in that zone, regulate the volume, select the listening source and so on. There are also several additional functions, allowing the advanced management and room combining of the conference halls: each one is divided into several sectors, that can be either used together or dynamically combined according to the needs of the customers and the event.”

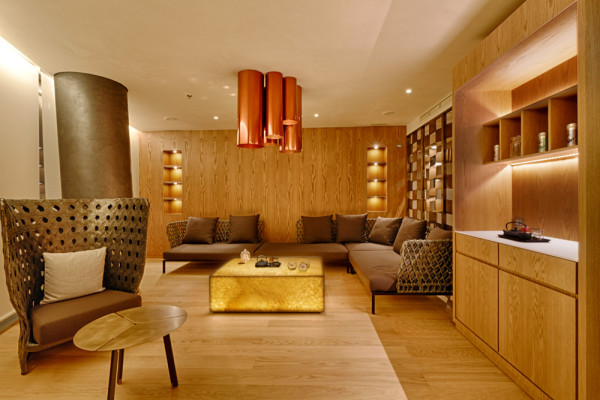

In addition to general sound sources, the lounge bar’s music programme can be transmitted throughout the hotel’s areas, including meeting rooms. The RCF Q Series monitors are installed in the lounge bar and two main conference rooms, in order to maximise acoustic quality in harmony with the interior design.

The vocal alarm functionality is ensured by automatic evacuation messages and BM 9804 and BM 9804FM microphone consoles, with BE 9808 extensions, certified according to the EN54-16 and with integral monitoring of the critical path of the signal.

The entire system is centralised in the hotel’s technical room and contained in three racks. Besides the MU 9186 digital matrix, the system also comprises the UP 9504, UP 9502 and UP 9501 multichannel amplifiers, that are used in different coverage zones and all EN54-16 certified. The system is completed by PL 68EN, DU 50EN and BD 5EN speakers, all EN 54-24 certified.
