Funktion-One systems selected for Beirut rooftop venues

Funktion-One’s distributor in Lebanon, Audiotec Group, has installed sound systems at two new rooftop venues in Beirut. The two venues, called Caprice and Iris, are restaurant bars, both owned and operated by Addmind.

Audiotec Group’s managing partner, Ralph Choueiri, explained: “When Addmind contacted us to say they wanted to put Funktion-One systems into Caprice and Iris, we were very happy, these are two of the most exciting venues in Beirut. I know that the owners always look for the best quality there is, which is why they chose Funktion-One.”

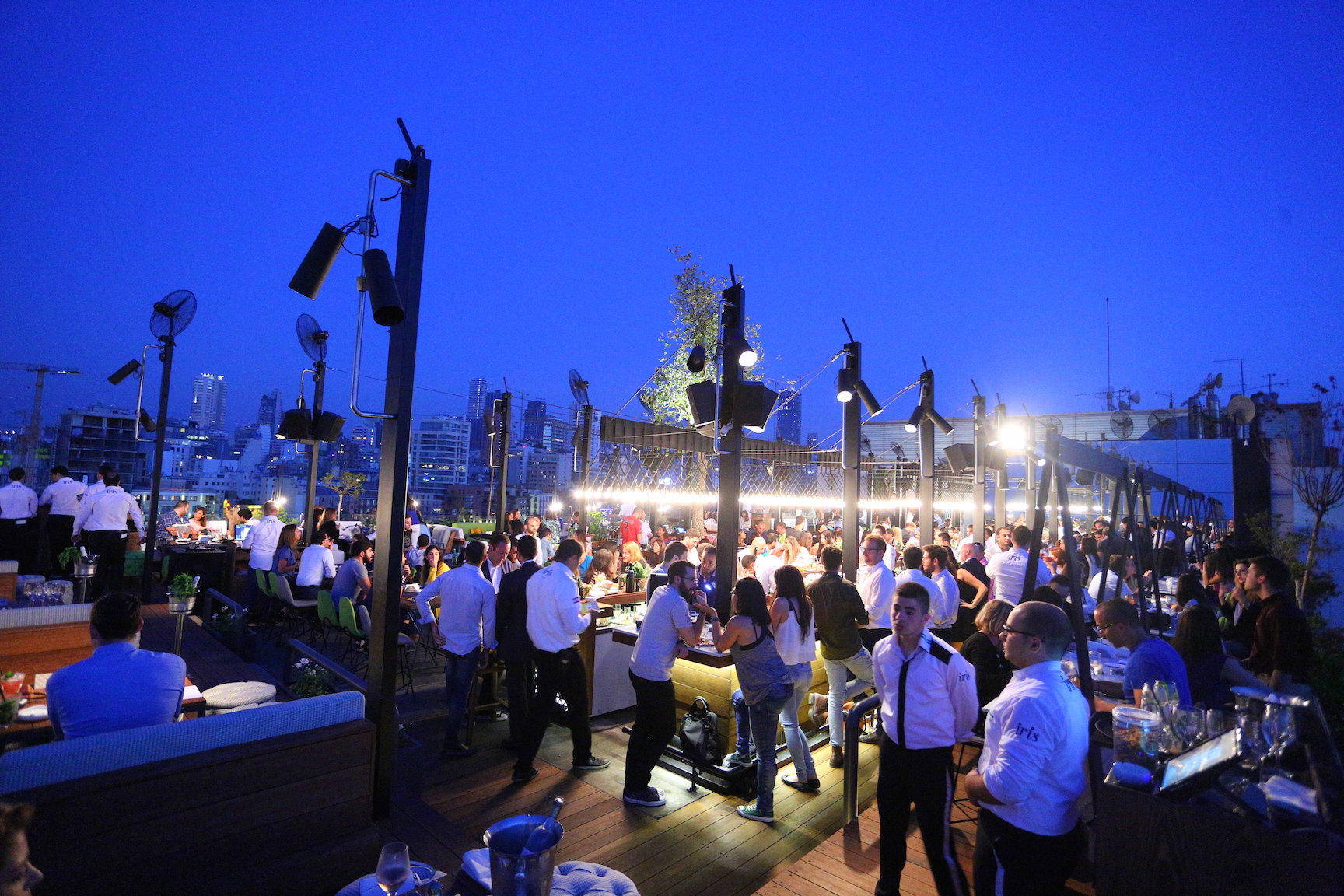

Iris is located on top of the al-Nahar building and features an outdoor deck and wooden bar. It is a medium sized rooftop venue where the sound needs to adapt for low level background music during the day, live performances in the early evening and louder club music till late.

Funktion-One design engineer, Mike Igglesden worked with Audiotec Group to design the systems for both venues, commented: “We also had to be conscious of neighbours. To deal with this, we designed a twin four point system of F101s for the central area, and stereo F81s for the surrounding areas. By doing this we were able to create a high-intensity in the middle due to the general close proximity of the speakers. Despite there being 25 speakers, we’ve kept the number of source locations to six.

“The pair of F81s facing the stage and the F101s either side of the stage are on separate processing channels so that the F81s can be turned off or used for monitors, and the F101s’ level can be raised for live performances. For the low frequencies, we used BR218s in the central area and BR118s for the surrounding area. These are ideal as they produce strong, deep, nearfield bass that doesn’t travel too far, again helping us to localise the sound.”

Caprice is a large rooftop venue located on the Jal El Dib seaside road, with both a restaurant and bar. Similar to Iris, Addmind wanted an immersive sound at low level for when it is a restaurant and a higher intensity later on.

“Our main issue was that the dancefloor is in the middle of the venue with nowhere to hang the main system,” said Igglesden. “Because of the highly controlled directivity of Funktion-One Resolution speakers, we were able to overcome this by placing four Res 2s at height in a four point arrangement around the perimeter of the venue. These speakers fire over the periphery areas and onto the dancefloor to provide the required intensity.

“Below the Res 2s and in three other positions around the perimeter, F101s and F88s were used to provide a clear, but lower intensity sound for those peripheral seating areas and bars. Due to not wanting the bass to travel too far out of the club, we used six BR218s distributed around the venue. These are perfect for the challenge because they produce punchy nearfield bass that doesn’t travel too far, helping us again localise the sound where required.”

Choueiri refelcted: “Both of these venues are excellent references for Audiotec and for Funktion-One. They show what can be achieved with the compact range of loudspeakers, together with a creative approach designing the best sound reinforcement for the space in question.”

Addmind’s CEO, Tony Habre, commented: “The Funktion-One sound systems that have been beautifully integrated into our venues by Audiotec Group have volume, clarity and dynamic range that is simply unbeatable. The results at Caprice and Iris Beirut, as well as White Beirut, speak for themselves.”
