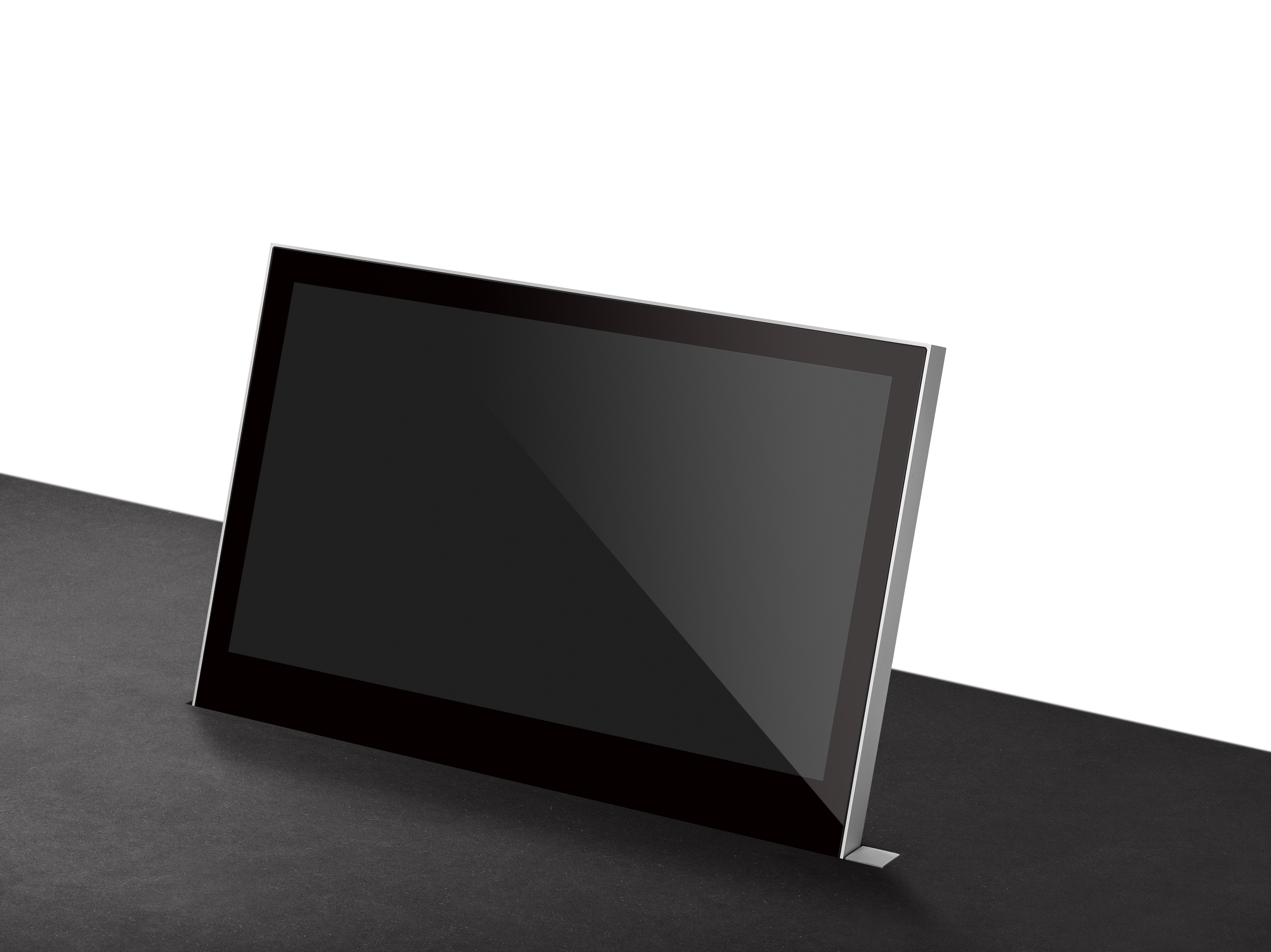

The first-ever professional 24in 4K motorised retractable monitor from Arthur Holm is the company’s star turn at ISE 2018
The 4K monitor has joined Arthur Holm’s DB2 monitor range, which has already won a Red Dot Award for design. It has 20° of adjustable inclination, an operation button on the top of the screen and 2mm double-sided anti-reflective black-edged glass. The housing is made from solid aluminium.
The retractable screen is configurable by way of a secondary LCD 2.2in display and a remote control, with configuration and operation possible without having to remove the monitor from the furniture.
The unit provides embedded speed and protection presets to restore factory values, to auto-check diagnostic and to provide internal protection functions. It also offers an auto-calibration mode for mechanical speeds and safety parameters. A firmware upgrade is possible via a USB port. A safety system detects obstructions, in which case the unit stops.
The adjustable mechanical parameters are operational via AHnet or ISD for calibration and mechanical adjustments. Adjustable parameters of brightness, contrast and backlight are available via RS-422. An auto-calibration mode is available for mechanical speeds and safety parameters.
