Integrated system combines Soundcraft Expression 2 console, JBL PRX400 loudspeakers, Crown XTi amplifiers and AKG microphones
Rory Alderson may only be 23, but he already has nine years’ experience in the front line, having been in the pro audio industry since he was 14 — mixing sound in both the studio and live environments.

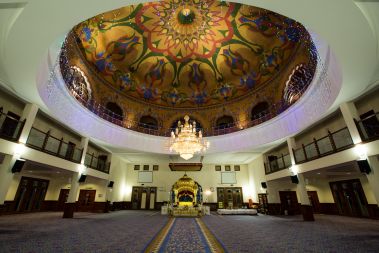

With precocious audio ears it was only a matter of time before he set up his own company — which he did in 2007. Based in Rochester, Kent, RoryAld Live has now provided a Harman Professional solution using multiple brands for the Guru Nanak Darbar — a Gurdwara (Sikh temple) in nearby Gravesend. One of the largest in Europe, it has three spacious meditation halls at its core.
Experiencing problems with reverberance and distortion in the high domed main worship hall — and faced with the need to have its own fully-optimised and permanently installed system — the authorities contacted Rory after being impressed with the quality of the Soundcraft Si Expression mixing console he had used when providing sound reinforcement for a Sikh wedding at the site. “They then invited me back to do their New Year’s Eve event and informed me that they needed a proper system,” he states.
His start point was to rewire the main hall and install a Soundcraft Si Expression 2 desk (with 24 recallable mic pre amps) at balcony level, along with a digital snake and Soundcraft Compact Stagebox 16 in the drive rack. He then set about configuring the digital matrix.
Sound Technology, Harman Professional’s UK and Eire distributors, introduced Rory to JBL’s new cost effective PRX412 enclosures. A demo convinced him that six could be run in pairs down the rectangular, 1000-capacity main worship hall, mounted high up and pointing straight down to minimise echo and reflections. These are delayed towards the rear and run in stereo pairs from two Crown XTi 2500 amplifiers.
“It made sense to stay within the Harman stable,” he says “The temple operates 24/7 so we needed a solution that was reliable. The 90° x 50° coverage pattern ensured there would be no flat spots. “We EQ’d the system in the Si Expression 2, which is an extremely user friendly desk, and set the delays in the desk matrix. It’s a vast improvement on what they had before. They can be run both at low volume and at a higher SPL when the temple is full, without feedback.”
Source inputs include an AKG C747 at the palki (the canopy where the book of Sikh scripture resides) and AKG D5s onstage, with live music from AKG D40 instrument mics, as well as line devices such as CD. As for outputs, in addition to the main PA system, the sound feeds pre-existing ceiling speakers in the entrance as well as external loudspeakers.
Pictures: Rob Sampson, Lux Studios
