Allen & Heath matrix mixers upgrade Vienna concert hall PA system

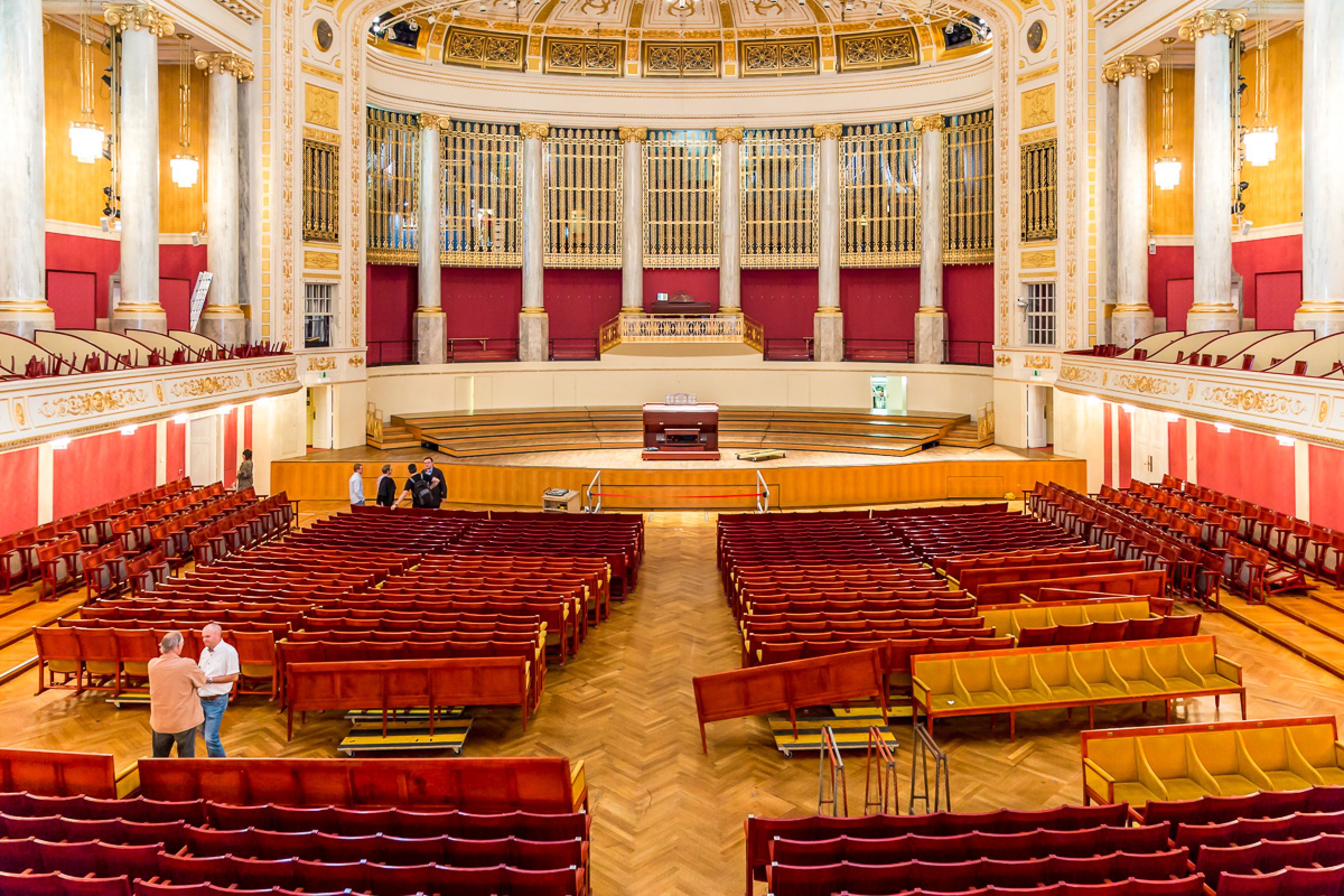

The Konzerthaus concert venue in Vienna recently upgraded the PA system serving its Great Hall and Mozart Hall, with ATEC Pro installing Meyer Sound speakers and Allen & Heath iDR installation matrix mixers.

The iDR DSP system, designed for voice reinforcement, comprises an iDR-4 matrix mixer for the Great Hall, and an iDR-8 for the Mozart Hall, with a PL10 8-channel rotary panel for remote control, and a PL-8 logic box installed in the Mozart Hall for interfacing to external systems.

Control of the entire sound system is via the iDR-8 and additional PL10 controller, including management of a hand-held radio mic and CD players for playback. The system default is Stage Manager mode, enabling limited access and control of settings for simple use.

The iDR-4 and iDR-8 units can be switched in both rooms to Technician mode, enabling control of all the speakers, which can be connected to a mobile PA System. The PL-8 in the Mozart Hall is setup to change the sound beam presets of the Meyer Sound speaker system to switch between coverage of the whole room and only the balcony, which is used if a mobile PA is setup without delay speakers for the balcony. Similarly, in the Great Hall, coverage of the main room and balcony can be muted in Technician mode.

Konzerthaus head of sound, Ingeborg Doblander commented: “We selected iDR because it is simple to use, and most of the time the system is used by the stage manager or other non-technical staff. Settings, such as EQ, volume range and compression, can be programmed in advance by the sound engineer, so that the user only need activate the radio mic or CD player via the clearly arranged PL10.”
