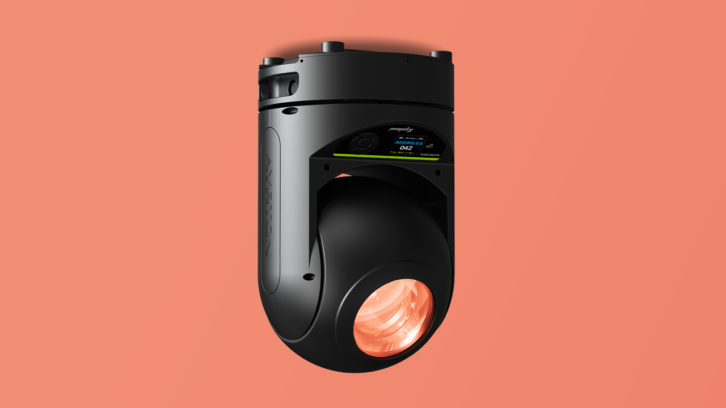

Ayrton has launched the Kyalami, its first IP65-rated laser source luminaire in its Creative Solution series. Kyalami says the new fixture has been inspired by the MagicDot, which was released in 2015. Devised for architectural graphic effects, Kyalami is an ultra-compact luminaire with dimensions measuring just 265 x 430 x 265 mm (l x h x d) and weighing just 14.5kg.
A sphere of just 265mm incorporates Kyalami’s 100W laser module, cooling system and optics, while its 126mm front lens positioned in the continuity of the sphere provides Kyalami with a unique visual signature.
Ayrton says the Kyalami’s proprietary three-lens optical system produces an intensive 1° beam and an extreme range of focus that permits the beam shape to be adjusted according to the operating distance.
Kyalami delivers a luminous flux of 400,000 lux at 10m from its speckle-free laser source, which is designed for rendering a D65 white point that allows excellent colour reproduction.
A colour section includes a high-definition progressive CMY colour mixing system and a multi-position instant access colour wheel equipped with five corrective filters, and 17 complementary colour filters.
Kyalami offers a choice of 29 fixed metal gobos designed to sculpt light in “beam” mode. These gobos can be blended with two individually combinable rotating prisms allowing the production of a multitude of volumetric lighting effects. A light and heavy frost filter complete the graphic tool palette.
